SMA Solar String Inverters

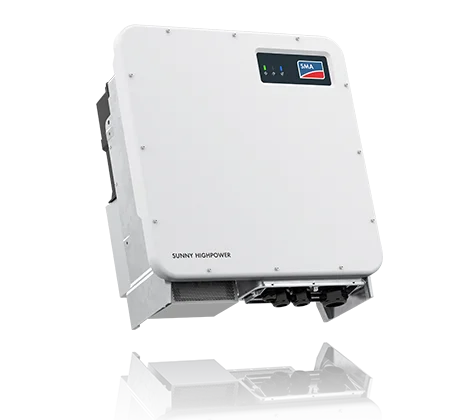

PEAK3 stands for pure power. With its compact design, the inverter offers the highest power density per device. The advantages: optimal performance at a light weight. The result is cheaper transportation and easier installation. In combination with the project-specific DC Combiner Boxes, the PV array can be oversized up to 150 %. The Data Manager completes the system and enables it to fulfill all of the grid operator’s requirements.

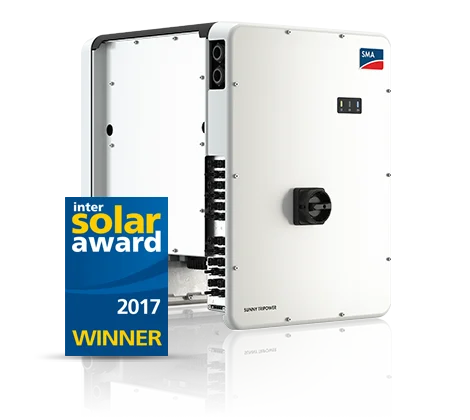

The Sunny Tripower CORE1 is the world’s first free-standing string inverter for decentralized rooftop and ground-based PV systems as well as covered parking spaces. The groundbreaking new design allows reductions in installation time of up to 60% and, at the same time, lowers the total cost of ownership (OPEX).

• Best in class: 12 MPP tracker
• 24 strings with Sunclix connectors
• Up to 150% oversizing of PV array
• Up to 1,100 VDC
• Bifacial modules supported

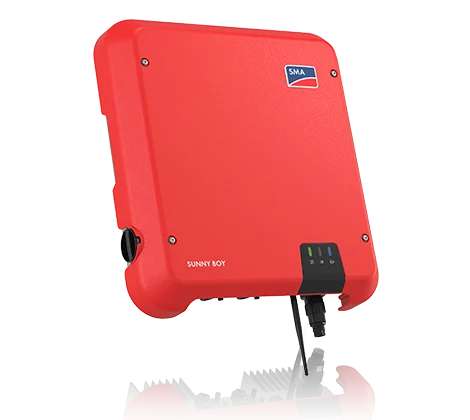

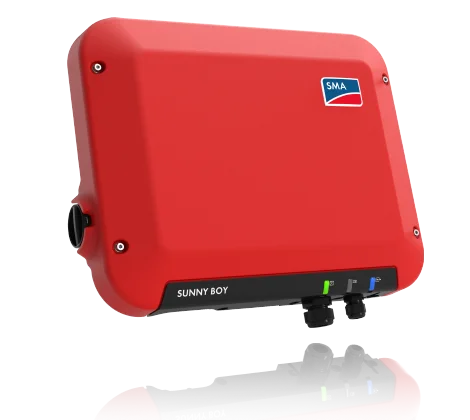

It’s so easy to reap the benefits of solar power: The completely redesigned Sunny Boy 1.5/2.0/2.5 is the perfect inverter for customers who want to take full advantage of their small PV system. Among other features, it enables an increase in consumption of self-generated power, allows versatile uses, and is very easy to integrate into the home network. In addition, its innovative design and new communication concept offer many advantages during installation and commissioning. Thanks to direct communication with the SMA Energy Meter, both limitation to 70 percent, which is required in Germany, and limitation to 0 percent is possible.

With its reduced weight, the Sunny Boy can be installed quickly while taking up minimal space. The Sunny Boy can be commissioned quickly via smartphone or tablet thanks to its web interface.

• One-person installation due to low weight of 17.5 kg
• Compact design through minimum space requirements
• Quick installation thanks to external connections
• Intuitive commissioning and local monitoring via a smartphone or tablet

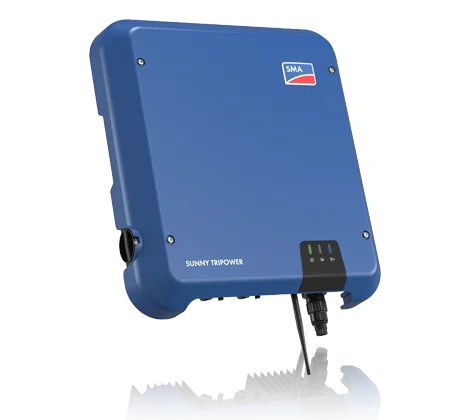

The Sunny Tripower 3.0–6.0 makes PV systems in private households especially powerful. It combines top inverter performance with maximum ease and comfort for its users. With integrated services and shade solutions, it can meet any challenge found on roofs. The Sunny Tripower reliably ensures maximum solar yields and reduces electricity costs.

The Sunny Tripower 8.0–10.0 makes PV systems in private households and small commercial applications especially powerful. It combines top inverter performance with maximum ease and comfort for its users. With integrated services and shade solutions, it can meet any challenge found on roofs. The Sunny Tripower reliably ensures maximum solar yields and reduces electricity costs.

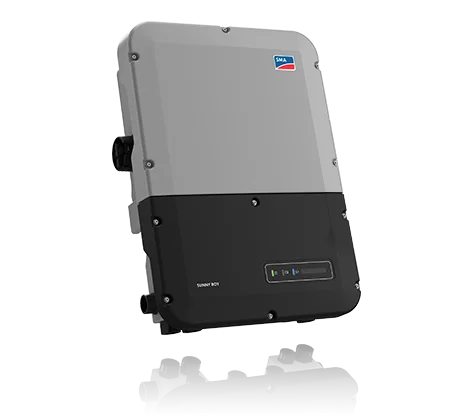

The Sunny Boy-US series features a wealth of improvements and joins SMA’s lineup of field-proven solar technology backed by the world’s #1 service team. The world’s first Secure Power Supply now delivers up to 2,000 W of opportunity power when the grid goes down and the sun is shining. Installation has never been easier thanks to SMA’s Installation Assistant, direct access via smartphone, and integrated DC disconnect.

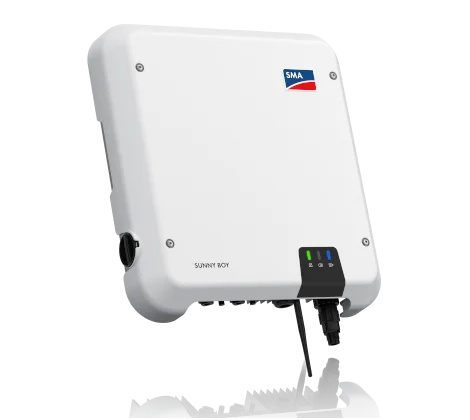

The new Sunny Boy 5.5-JP succeeds the successful Sunny Boy 3500 – 5400TL-JP for the „Low Voltage“ Market application. It is more than just a PV inverter: with the integrated SMA Smart Connect service, it offers all-round comfort for PV system operators and installers alike. The automatic inverter monitoring by SMA analyzes operation, reports irregularities and thus minimizes downtime. The Sunny Boy is ideally suited to solar power generation in „Low Voltage“ plants. Thanks to its extremely light design and location of the external connections, the device can be quickly installed and easily commissioned thanks to the intuitive webserver. The standard device already have IP65 and resist heavy salt conditions.

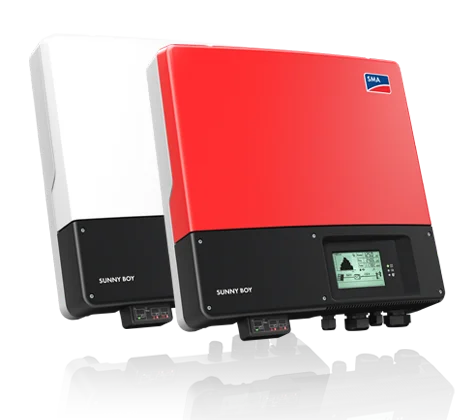

The Sunny Boy 4500TL-JP and 5400TL-JP offer more communication options, are easier to use and more efficient than ever – setting new standards in inverter technology. A modern graphic display, indication of the daily values even after sunset, simplified installation concept, stand-alone function and wireless communication via Bluetooth: The new Sunny Boys fulfill every wish. The Sunny Boy 4500TL-JP and 5400TL-JP have a peak efficiency of 96.7 percent with a wide input voltage range. They are multistring inverters providing an optimal yield, maximum flexibility for system design and an outstanding module compatibility – this makes them the first choice for nearly any PV system.

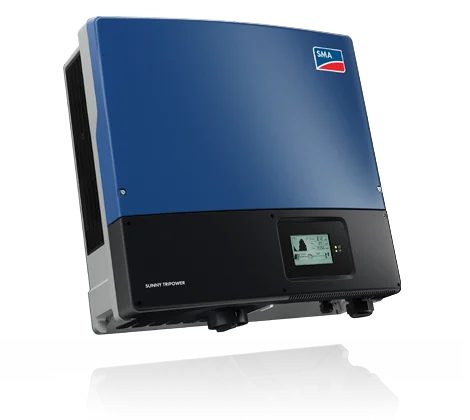

The Sunny Tripower 15000TL / 20000TL / 25000TL is the ideal inverter for large-scale commercial and industrial plants. Not only does it deliver extraordinary high yields with an efficiency of 98.4 %, but it also offers enormous design flexibility and compatibility with many PV modules thanks to its multistring capabilities and wide input voltage range.

The Sunny Tripower 15000TL / 20000TL / 25000TL is the ideal inverter for large-scale commercial and industrial plants. Not only does it deliver extraordinary high yields with an efficiency of 98.4 %, but it also offers enormous design flexibility and compatibility with many PV modules thanks to its multistring capabilities and wide input voltage range.

The new Sunny Tripower 25000TL-JP is the high-performance solution for use in larger, decentralized medium-voltage systems on the Japanese market. This newly developed product is based on the technologically mature Sunny Tripower platform. Users benefit from years of experience and the professional support that SMA as a market leader provides. Its peak efficiency of 98.7 percent ensures high yields, thereby guaranteeing system operators rapid amortization. The multistring concept and wide input voltage range allows for high design flexibility and compatibility with many PV modules on the market.
